DX4015便携式多参数土壤呼吸测量系统
DX4015portable multi-parameter soil respiration measurement system is FinlandGasmetCompany is based on Fourier transform infrared spectroscopy (FTIR) technology portable high-precision soil greenhouse gas emission monitoring system.DX4015is equipped with a heatable and highly sensitive gas analysis chamber, which is especially suitable for trace gas detection in an environment with high relative humidity of air. Users through supporting softwareCalcmetcontrolDX4015.Calcmetcan update the concentration and spectral values of the detected gas within a few seconds and present their change trends in real time.
DX4015fitEosensecompany'seosACautomatic air chamber can be used for short-term or long-term measurement of soil greenhouse gas flux. ByeosMXmultiplexer,DX4015can be accessed at most12eosACautomatic air chamber, matchingeosAnalyzeanalysis software can be used to calculate greenhouse gas flux data in real time.
lis specially designed for gas detection in humid environment;
lbuilt-in air pump, no external sampling system is required;
l12Vbattery powered, suitable for field operations;
lcan be measured simultaneously50kinds of gases;
lautomatic air chamber is equipped with a mechanical arm, which can be raised and lowered slowly;
lvent can ensure stable atmospheric pressure and will not affect the measurement through reverse diffusion;
lgas chamber can effectively promote gas mixing.
Main parameters
1.determination of gas types: up to simultaneous determination50gas compounds;
2.Detection range: sub-ppmto percent;
3.Response time: less120s;
4.zero drift: each zero calibration interval is less than the measurement range2%;
5.Sensitivity drift: None;
6.linear error: less than the measurement range2%;
7.temperature drift: per10Kthe temperature change is less than the measurement range2%;
8.pressure impact:1%pressure changes can cause measured values1%, with environmental pressure measurement and compensation;
9.background measurement interval:24hours5.0or higher purity nitrogen);
10.power supply:115/230V,50/60Hz;
11.power consumption: average150W, max.300W;
12.analysis software:Calcmet(win7orwin10system);
13.data communication: applicableRS-232signal;
14.gas filtration: minimum2μmparticulate filter;
air port device
15.air inletSample in:Swagelok 6mmstainless steel interface;
16.outletSample out:Swagelok 8mmstainless steel interface;
17.interferometer scavenging portInterferometer purge:Swagelok 6mmstainless steel interface;
18.weight:13.9kg;
19.product certification:CEandUKCA;
housing
20.size:390×445×164mm;
21.material: aluminum;
spectrometer
22.resolution:4/8cm-1;
23.detector: thermoelectric refrigerationMCTdetector;
24.beam splitter: zinc selenide anti-reflection coating;
25.Wavy range:900-105000px-1;
chamber
26.structure: multi-channel;
27.length of air path:5m;
28.material: gold-plated aluminum;
29.mirror: fixed and protective gold coating;
30.Volume:0.4L;
31.temperature: can be heated50 ℃;
Work and storage environments
32.pressure: ambient pressure;
33.gas flow rate:2-10L/min;
34.Storage temperature:-20 to 60℃;
35.operating temperature:5 to 30℃ (long term);0 to 40℃ (short term);
eosACautomatic opening and closing air chamber
eosACautomatic opening and closing air chamber is an automatic air chamber used to measure various soil gas fluxes.eosACcan be associatedDX4015is used in conjunction with the measurement and analysis of soil greenhouse gas concentration. Users can use softwareeosAnalyze-ACPost-processing and visualization of data.
Main parameters
1.chamber volume:49225 px3;
2.air chamber:4550 px2;
3.operating voltage:12V DC;
4.power determination:<8W;
5.Standby power consumption:<1W;
6.weight: about5kg;
7.pipe length (between analyzer and air chamber):10meters or30m;
8.Auxiliary Analyzer Interface:3;
9.post-processing and visualization software:eosAnalyze-AC.

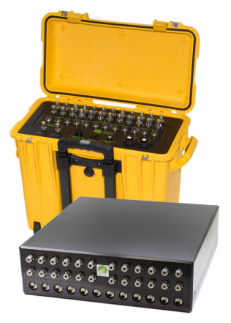

multi-channel gas control conversion module
eosMX/MX-Pmultiplexer is a gas path conversion tool for sampling gas during gas measurement.DX4015eosMX/MX-Pcan be associated12automatic air chambers are connected.eosMX/MX-Pequipment12eosLink-MXmanagement software for up12gas paths.
Main parameters
1.size:eosMX:46×43×14cm,
eosMX-P:50×29×44cm;
2.weight:eosMX:12kg,
eosMX-P:17kg;
3.operating voltage:eosMX:100V AC to 240V AC,
eosMX-P:12V DC (±0.5V DC);
4.power determination:12W 8W;
5.Standby power consumption:< 12W.

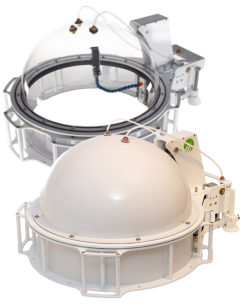

for ecosystem net exchange (NEE) Transparent automatic air chamber for measurement(optional)
eosAC-LT/LOair chamber can be used to measure the net exchange capacity of the surface ecosystem.NEEresearch.eosAC-LT/LOcan be replaced in the field environment to minimize data loss caused by instrument shutdown. The air chamber has two auxiliary interfaces, which can be accessed with additional sensors (e. g.PAR, soil temperature, soil moisture, etc.) and other environmental data of the measurement location; the built-in fan can effectively promote the mixing of gases. Users can also choose air chambers with transparent or opaque side walls according to their needs.
Main parameters
1.chamber volume:0.072 m3;
2.air chamber:0.21 m2;
3.operating voltage:12V DC;
4.weight: about18kg;
5.pipe length (between analyzer and air chamber): maximum15-30m;
6.Auxiliary sensor interface:2;
7.the side wall of the air chamber: transparent or opaque;
8.sleeve height:10cmor20cm;
9.base: Stackable base for increasing height.
Origin and Manufacturer: FinlandGasmet
